PV Solar Surge Protective Device(DC SPD)

Download datasheet
How it works

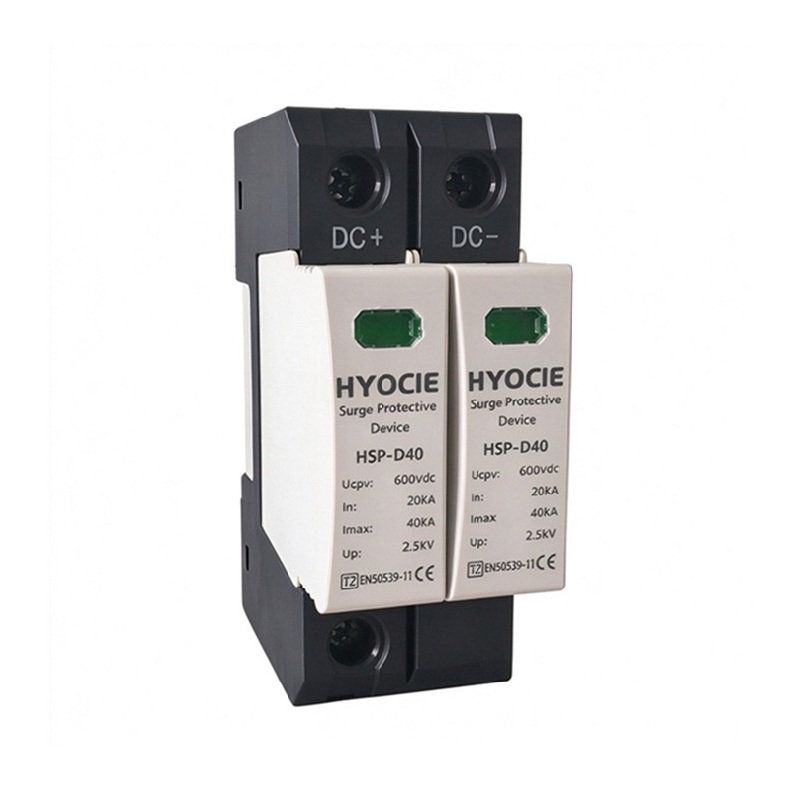

HSP-D40 (T2)

2P 20-40KA

500V/600V/800V/1000V DC

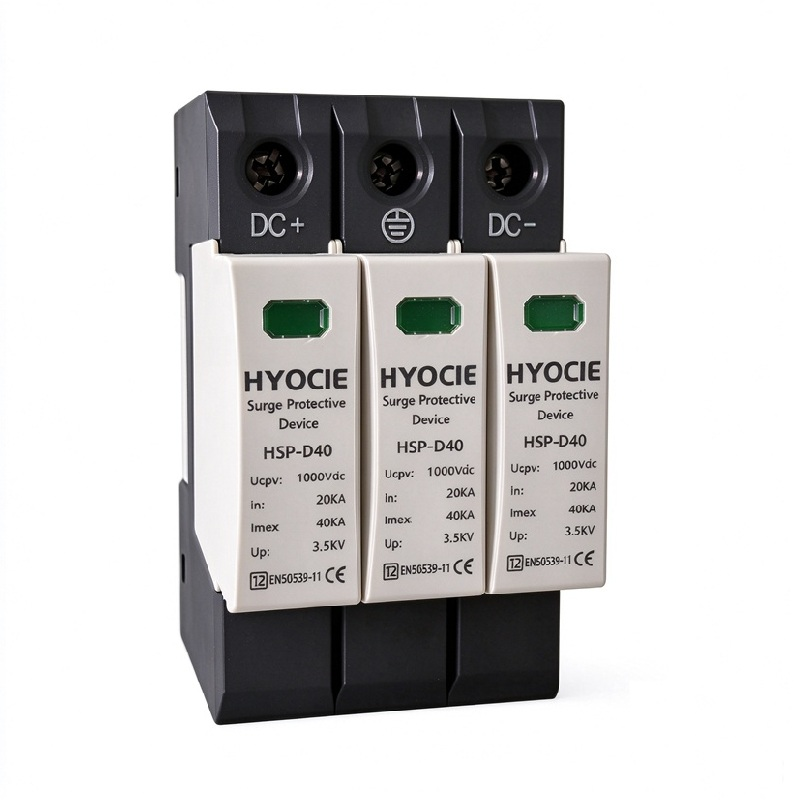

HSP-D40 (T2)

3P 20-40KA

1000V/1500V DC

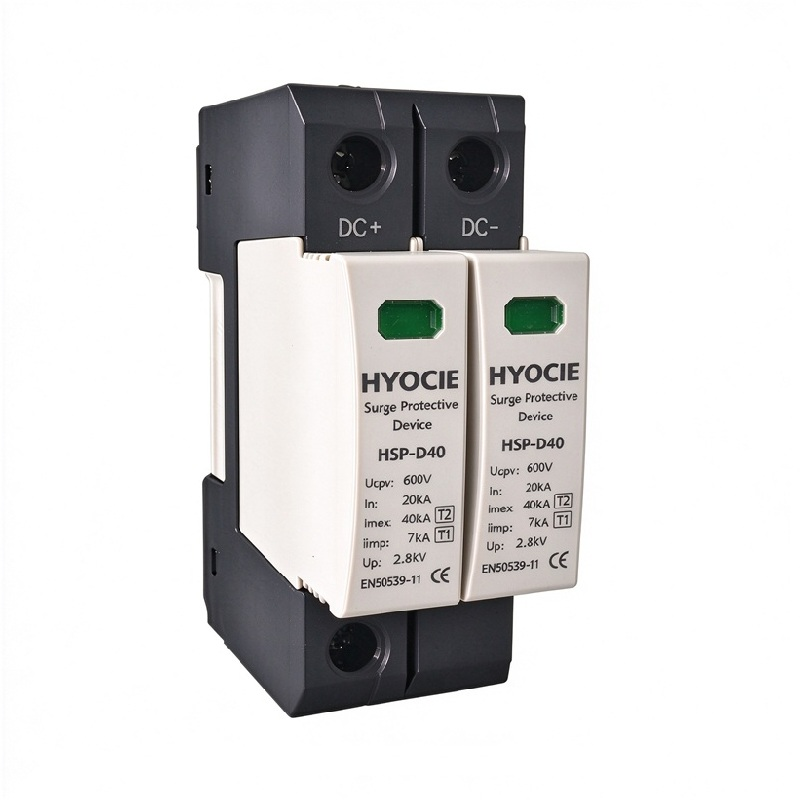

HSP-D40（T1+T2)

2P 20-40KA

600V DC

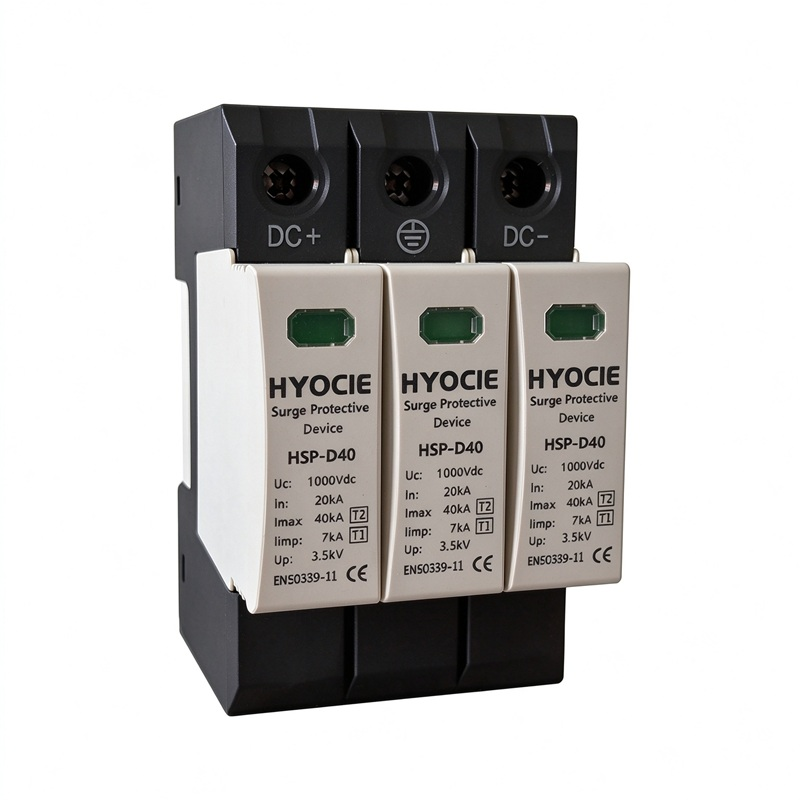

HSP-D40（T1+T2)

3P 20-40KA

1000V/1500V DC

Safety & Compliance:

Built-in thermal disconnector and fault indicator. Tested to EN50539-11.

Design:

Modular plug-in for fast replacement; DIN rail mountable.

Versatility:

1000V / 1500V DC, Type 2 or Type1+2.

Applications:

• Solar PV DC combiner boxes

• Inverter DC side protection

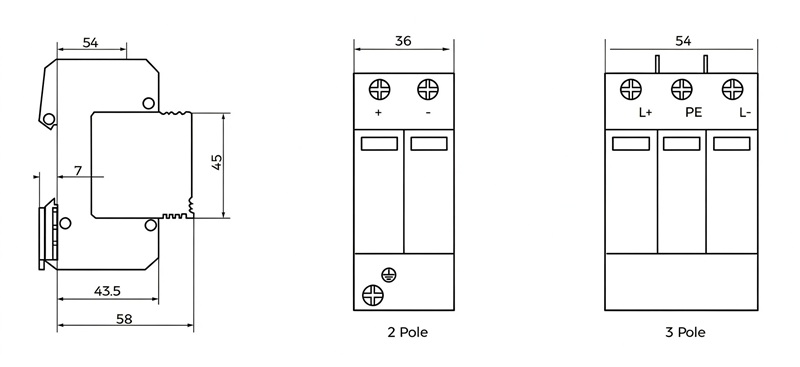

Dimensions & Typical Wiring

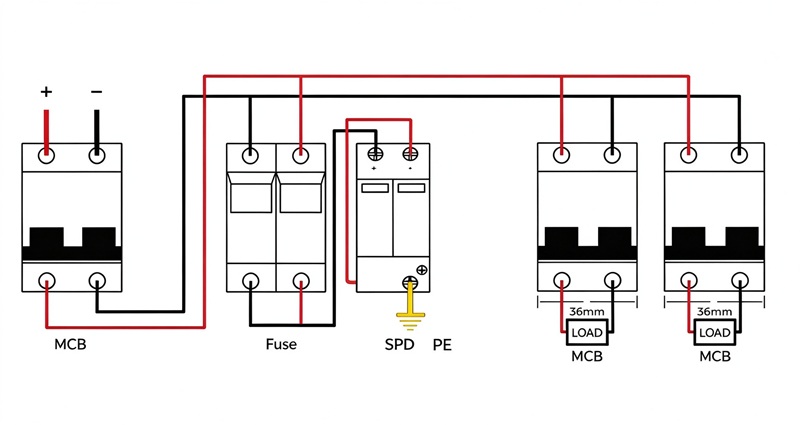

Critical Wiring Guidelines

  1. Mandatory Overcurrent Protection: Install DC fuse/MCB upstream of SPD to cut circuit on SPD failure and avoid fire risk.
  2. Earthing: PE wire ideally ≤0.5m, copper cable 6–16mm². Connect SPD directly to equipotential bonding bar.
  3. Polarity: PV positive to L+, negative to L-. Reverse polarity damages internal MOV.
  4. DIN Rail: Mount SPD, fuse and MCB on standard 35mm DIN rail.
  5. Load: Each PV string with separate output MCB for partial maintenance.
  6. Replacement: Pluggable cartridge, replace without disconnecting full DC bus.
